USB-C Amp Meter

This one is inspired by Paul Daniels's PLD USB-C meter, which he is no longer manufacturing.

I bought one myself, but found it to have a few little drawbacks: It sat flat on my bench, so I would always look at the display from a 50° angle. Also, because of how the lights are arranged here, it was not always easy to grasp when current spikes occured.

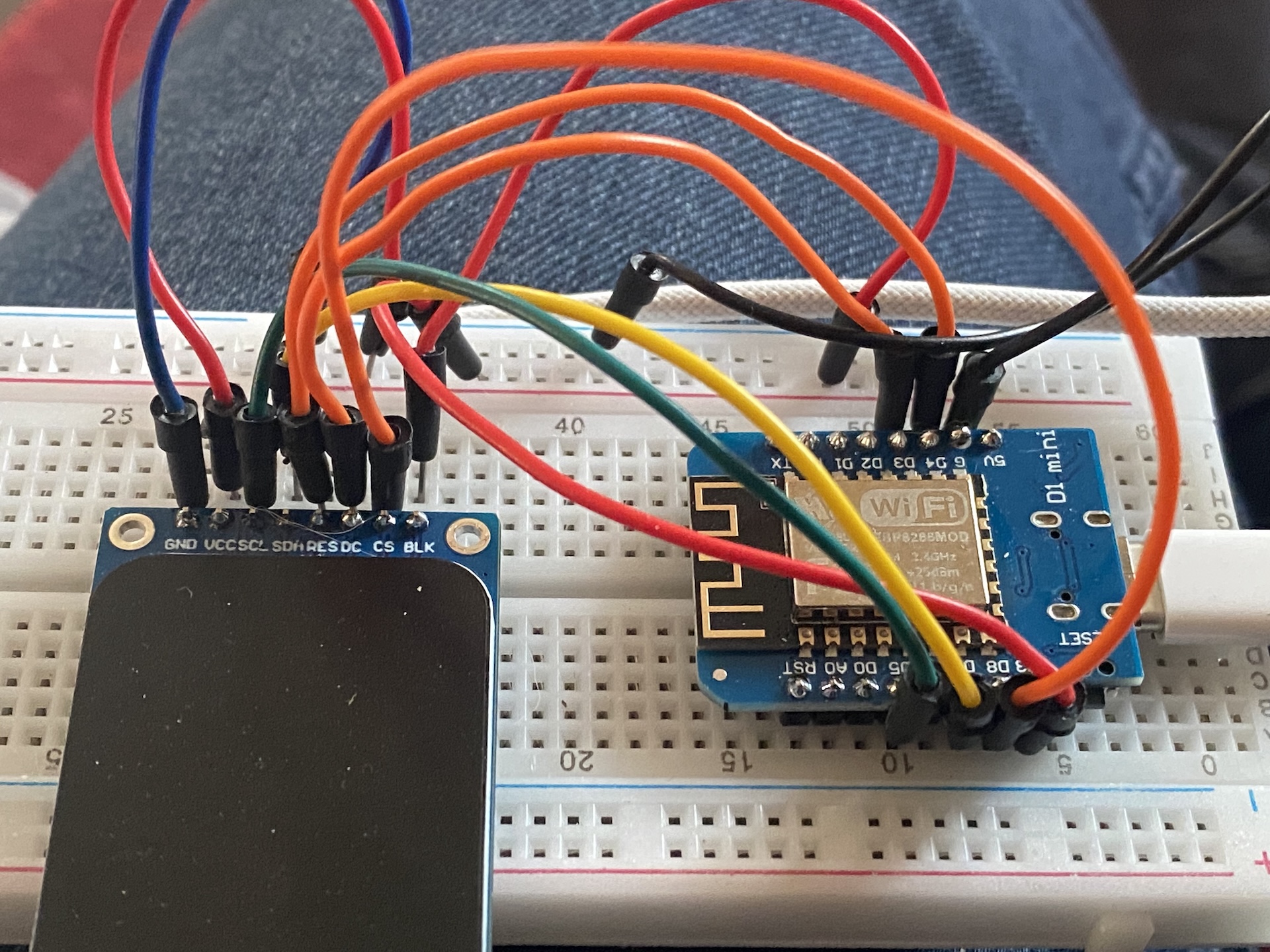

display experiments Experimenting with OLED display and ESP8266

I had some D1 Mini ESP8266 boards and a couple of different displays laying around for other projects or just to play with, so I tried to recreate PLD's invention, but with entirely different hardware.

At the heart of the amp meter is the INA226 (which could have also been an INA219 since I don't use the alert feature) by Texas Instruments. To make playing around with it easy, I used a WEMOS D1 Mini development board, and the first working firmware simply logged readings to it's serial port.

Speaking of the serial communication, I chose to be compatible with PLD's serial protocol, which I gathered from his usbc-meter project on Github. I first created an app using the Qt framework, that is able to communicate with PLD's meter (learning Qt while I was at it). I then created a firmware for the D1 Mini, that reads from the INA226, drives a 128x64 OLED display, and also writes to the serial port.

Still having issues with cross compiling the Qt app for Windows and Linux; also being forced to GPL my code when using Qt, I'm looking for a different framework to use. Currenty wxWidgets seems to be the most popular choice, but I'm struggling with getting it to work.

On the hardware side of things, I made the schematics with KiCad, designed version 1 of the PCB, and ordered a set of 5 at PCBWay. After a few tweaks I had a real working prototype to make further adjustments to the firmware:

  • Display only voltage ratings instead of the raw measurements
    While it is "nice" to see so much changing digits, I never had a use for this, as the power bricks I used always adhered to the Power Delivery standard voltages (+- a few %). Because of that, I decided to use and display only voltage "classes" (5V, 9V, 15V, 20V etc). On the OLED these are staggered across the top.

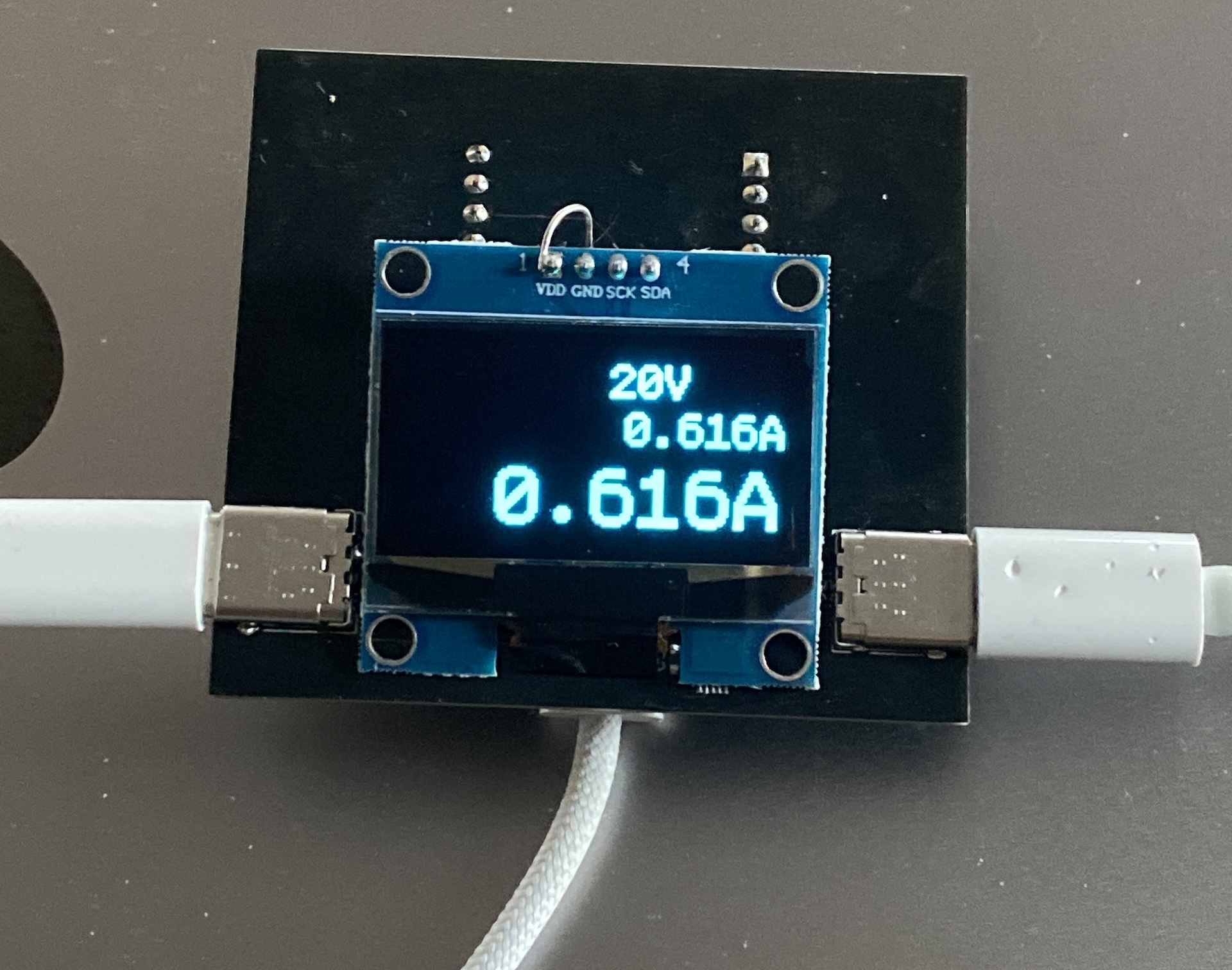

  • working prototype
  • Display peak current
    Because I now had even more unused display areas, I decided to also display the peak current draw (of the last ~50 measurements) in that voltage class, as that was previously only available in the OSD.
  • Display current bars
    As I sitll had some unused display area, I decided to display the current draw as a vertical bar. That was really easy to add, as I already had the max current reading to serve as the bar's maximum. I think this bar makes it easier to see current spikes.

I found a coupple of mistakes in the design (like a too large shunt resistor value and mixed up Vcc/Gnd pins on the OLED), but I was able to fix them using donor parts. Also I placed the D1 Mini the wrong way around, so the data cable runs from the bottom, tilting the meter in the wrong direction. I also chose the "wrong" USB-C connector footprints - the 24 pin variant isn't easy to obtain and unnecessary hard to hand-solder, plus I had only four of them in stock, not enough to populate on the next pcb version. So I changed the pcb design a bit to use 6 pin connectors, as I only use the power and CC lines, and ordered a new set of PCBs, connectors, shunt resistors and other parts I previously harvested from old macbook boards.

To be continued...
